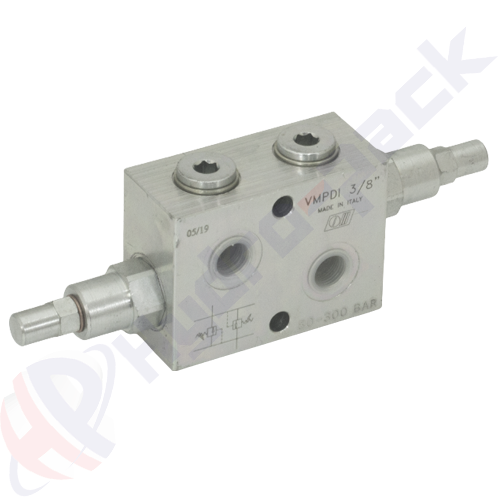

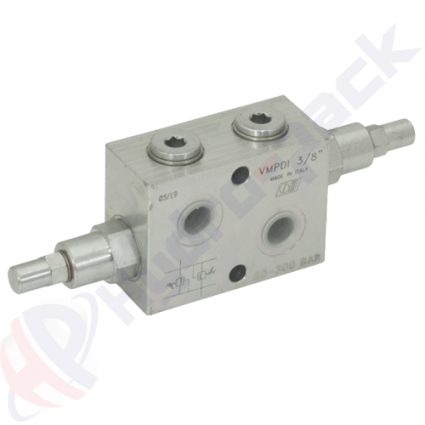

PRESSURE RELIEF VALVE

VMPDI 1/2 80-300 bar | V0738/300

Pressure relief valves are used in hydraulic systems to limit the system pressure to a specific set level.

If this set level is reached, the pressure relief valve responds and feeds the excess flow from the system back to oil tank.

Hydropack provide inline pressure relief valves with different setting ranges. VMPDI series have two port cross relief valves that limit the pressure in two ports of a cylinder/hydraulic motor to a certain setting. They are ideal to provide protection against sudden shock pressures. 6 ports (2 inlets and 4 reversible outlets) enable to use just one valve for two cylinders.

PortsG 1/2"
Max. Pressure350
Max. Flow Rate70
SerieVMPDI
Pressure Setting Range80-300
Standard Pressure Setting150
